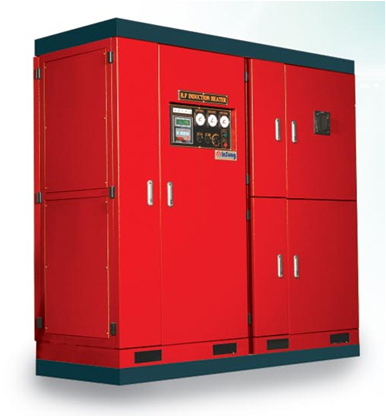

This Equipment's Maximum output-power is 100KW, using for Pipe welding department.
Main oscillation using IGBT Module, and Output parts including Huge Condensor.
So, equare products can be producing always maintain output value.
Inverter's Main parts assembly, composite Power Block Type maintain and repair equipment is more compactable & easier,
Enable to upgrade model.
Communicate with Main Control Computer, driver can be transfer or saving data. |
|
|
■32Bit DSP : Quality creditbility It has positioning mimimum suface on Semi-cinductor Type
■Communication Process : Can be direction communiated with Computer
■Auto Driving : When a changed shapes to Working coil, It can be Computer Auto Driving Mode form Inner process.
■Bright LCD : For observing equipments status, displaied LCD.
■Self Check Mode : Equipment self checking systems after displayed status on LCD, only it must drive when a nomal status.
■Veriety Alarm Mode : Can be precure industrial accidents.
■Output Control Mode : DC Power Control/DC Power Control/Amper Control Non power control
■Veriety Signal Input on Power control : RS-232C, 0-5V, 0-10V, 4-20mA, 1-5V
■Driving Function :It has more than 5mode driving function.
3step Auto Drive / Digital Manual Drive / Analog Drive / 4-20mA Drive
Semi-Auto STEP Drive / Computer Comunicate Drive |
|
|
Capacity |
W (mm) |
D (mm) |
H (mm) |
100 KW |
750 |
700 |
1,670 |
150 KW |
750 |
700 |
1,670 |
200 KW |
1,100 |
1,200 |
1,770 |
250 KW |
1,100 |
1,200 |
1,770 |
300 KW |
1,400 |
1,400 |
1,920 |
350 KW |
1,800 |
700 |
1,770 |
400 KW |
2,000 |
700 |
1,770 |
500 KW |
2,500 |
700 |
1,770 |
600 KW |
3,000 |
700 |
1,770 |
800 KW |
3,500 |
800 |
1,770 |
1,000 KW |
4,000 |
800 |
1,770 |
|
|
|
Max. Power |
~ 100KW |
Superficiality |
120KVA @ |
Frequency |
600KHz |
Max. Signal Cycle-time |
0.1s |
Min. OFF-Cycle-time |
0.5s |
|
|
|
AC line-to-line voltage |
380V or 440V±10%, 3Φ, 50 or 60HZ |
AC line current |
Clients Required |
AC power |
After Calculation |
|
|
|
Rectifier |
Diode, 3Phase FullWave Mode |
Inverter |
Half/Full Bridge, MOS FET |
Resonence |
Series Resonant |
|
|
|
|
|
|
|
